Conducted Emission

Conducted emissions refer to electromagnetic disturbances that are transmitted through conducting wires or cables connected to an electrical or electronic device. These emissions can propagate along power lines, signal lines (such as data cables), and any other conductive paths that are connected to the device.

Here's a detailed breakdown of conducted emissions:

Sources:

Conducted emissions originate from various sources within electronic equipment:

1. Power Supplies: Switching power supplies and transformers can generate conducted emissions due to switching transients and harmonics.

2. Electronic Circuits: Digital circuits, especially those with fast switching speeds, can produce conducted emissions through power and signal lines.

3. Motors and Drives: Electric motors and motor drives can introduce conducted emissions into power lines due to switching frequencies and power modulation.

4. Cables and Connectors: Poorly shielded or improperly grounded cables can act as antennas, radiating conducted emissions.


Frequency Range:

Conducted emissions typically cover a wide frequency range, often from a few kilohertz (kHz) up to several hundred megahertz (MHz), depending on the nature of the emitting device and the frequency of the signals or power being processed.

• Low Frequency Range (LF): Typically below 150 kHz, includes power line harmonics and switching noise from power supplies.

• Radio Frequency Range (RF): Spans from 150 kHz to several hundred MHz, encompassing emissions from digital circuits, clock signals, and other high-frequency components.

Measurement and Testing:

Conducted emissions are typically measured using specialized equipment such as spectrum analyzers and conducted emission measurement receivers. Testing is conducted with the device under test (DUT) connected to a standardized test setup that simulates real-world operating conditions. Measurements are taken across specified frequency ranges to ensure compliance with applicable EMC standards.

Test Setup


Test Instrument

Below are the some Major Test equipment, required for Conducted Emission Testing

1. EMI Receiver

2. Line Impedance Stabilization Network (LISN)

3. Pulse Limiter

4. RF Cables

Test Parameters

1. Frequency Range: 9kHz to 30MHz (depends on the Product standard)

2. Detector: Quasi-Peak, Average

Test Procedure

1. Setup EUT (Equipment Under Test) at the designated place, 0.8m high on the insulated table.

2. Table must be kept on the Ground Reference plane and at a distance of 0.4m from the Vertical coupling plane.

3. EUT should be energised through LISN with the rated Voltage and current and to be set in the highest configuration to achieve max level of emission from it.

4. RF cable should be connected between LISN and EMI Receiver.

5. Set the desired frequency range, limit lines and other parameters in EMI Receiver to receive the EMI signal from the EUT.

6. Select the peaks closure to limit line and measure the Q-Peak and Average values for final measurement.

7. Repeat step 5 & 6 for every individual line and neutral.

8. Capture the data like emission level in dbµV, Limit at that particular frequency, calculate the margin to mention in the final report.

9. There are different limit lines as per different product standards.

Most of the standards refers to the below limits lines based on the end use of the product.

Conducted Emission limits_Class A

Conducted Emission limits_Class B

Electromagnetic Emissions from the DUT should be less than the limits mentioned above.

Conducted Emission Spectrum with both the Class A and Class B limits.

In summary, conducted emission testing ensures that devices meet regulatory EMC limits, contributing to reliable and interference-free operation across electrical and electronic systems.

Common-Mode vs. Differential-Mode Noise

Electrical Noise

Electrical noise is any unwanted signal superimposed on a desired electrical signal that can distort, interfere, or reduce signal fidelity. In high-speed circuits and EMC analysis, this noise is typically classified as:

• Differential-Mode (DM) Noise

• Common-Mode (CM) Noise

These two have different origins, transmission paths, and countermeasures.

1. Differential-Mode Noise – “Normal-mode noise”

Differential-mode noise is the voltage difference between two conductors of a signal or power line. It represents the intentional signal path where the noise rides in opposition across the two conductors.

Current Flow:

The noise flows in opposite directions in a loop between the two wires. If one conductor has a +5V spike and the other has -5V, the differential noise is 10V.

Example Use Cases:

• Power rails: +V and GND in DC systems

• Communication: USB, HDMI, Ethernet pairs

• Analog signals: Sensor lines in instrumentation

Typical Sources:

• Switch-mode power supplies (SMPS) – due to rapid switching

• High-speed data lines – signal reflections, ringing

• Magnetic coupling – between traces or cables

• Load changes – from motors, solenoids, or relays

Mitigation Strategies:

• Differential-mode filters: Series inductors with capacitors across lines

• Matched impedance design: Prevents signal reflection and ringing

• Twisted pairs: Cables twisted to cancel out opposing fields

• Short trace lengths: Reduces antenna effect

2. Common-Mode Noise – “Ground-referenced noise”

Common-mode noise appears equally and in phase on both conductors relative to a common reference point, usually system ground or chassis.

Current Flow:

Both wires carry the noise in the same direction, and the return path flows through the ground plane, earth, or shielding.

Real-World Example:

• Long USB cables pick up RF noise equally on both data lines.

• AC power lines exposed to EMI from nearby radio towers or industrial machines.

Typical Sources:

• Electrostatic coupling: From nearby high-voltage lines

• Radiated emissions: Antenna-like behavior of cables or traces

• Ground potential differences: Between system components (e.g., USB ground loop)

• Parasitic capacitance: Between PCB traces and the chassis

Mitigation Strategies:

• Common-mode chokes: High impedance to CM signals, low to DM signals

• Shielded cables and connectors: With 360° termination to chassis

• Isolated grounds: Breaks in ground loops

• Ferrite beads/clamps: On external cables

3. Visualizing the Current Paths

Noise Type: Differential Mode

Current Direction: Opposite directions on each line, Reference Point: Across the pair, Return Path: One conductor to another

Noise Type: Common Mode

Current Direction: Same direction on both lines, Reference Point: Ground or chassis, Return Path: Through system or earth ground

4. Importance in EMC Testing

Emissions:

• Differential-mode emissions are mostly conducted (via power/signal lines).

• Common-mode emissions often become radiated, as CM currents form large loop areas (acting like antennas).

Compliance Implications:

• Regulatory bodies (e.g., FCC, CISPR, IEC) test both emission types.

• CISPR 22/32 and FCC Part 15 focus heavily on common-mode conducted emissions in lower frequency bands (150 kHz–30 MHz).

5. Filtering Techniques Comparison

Filter Type: CM Filter

Effective Against:  Common-mode noise, Components Used:  Common-mode choke, Y-capacitors

Filter Type: DM Filter

Effective Against: Differential-mode noise, Components Used:  Series inductors, X-capacitors

Notes:

• Y-capacitors connect from line to ground (handle CM).

• X-capacitors go across the line pair (handle DM).

6. Example: SMPS Input Filtering

In a switch-mode power supply, both noise types are generated:

• Differential noise arises from the switching node oscillations.

• Common-mode noise results from parasitic capacitance between high-frequency switching nodes and the chassis.

The input filter typically includes:

• X-capacitor across line and neutral (DM)

• Y-capacitors from line/neutral to ground (CM)

• Common-mode choke for both conductors

7. Application-Specific Impacts

High-Speed Digital Systems:

• Differential signaling (LVDS, HDMI, USB) relies on clean DM paths. Noise degrades data integrity (eye diagrams, jitter).

• CM noise can cause cross-talk between pairs or fail EMC radiated tests.

Automotive:

• CM noise is a major concern due to long wire harnesses acting as antennas.

• Standards like ISO 11452 and CISPR 25 require thorough CM filtering.

Medical Devices:

• Safety and immunity to external EMI are critical—isolation transformers, CM chokes, and filtering are used to ensure patient safety and compliance (e.g., IEC 60601-1-2).

Conclusion


Both types of noise must be addressed for:

• Regulatory compliance

• Signal integrity

• Functional reliability

Designers should always measure both types during EMC testing and implement layered filtering and shielding strategies.

EMI Suppression Capacitor

EMI suppression capacitors, specifically X and Y capacitors, play a critical role in filtering noise and preventing electromagnetic interference from propagating through the AC mains input.
These are safety-rated capacitors specifically designed to suppress conducted EMI (Electromagnetic Interference) in power lines.

They are placed at the input stage of AC-powered devices to:

• Filter out high-frequency noise from entering or leaving the equipment.
• Provide isolation and safety during fault conditions like surges or insulation breakdown.
• Maintain EMC compliance with regulatory bodies (like FCC, CISPR, etc.).

Safety Classes: X and Y Capacitors

These capacitors are categorized based on where they're connected and the safety risks involved:

X Capacitors:

X capacitors are typically made from metallized polypropylene film and Encapsulated in flame-retardant epoxy. They are designed to withstand repetitive voltage surges (due to lightning, switching, etc.). They have internal self-healing properties: a breakdown in the dielectric causes local vaporization of metal to isolate the fault.
They...

• Connected between Line (L) and Neutral (N).
• Used to suppress differential-mode noise (current flows in opposite directions in the two conductors).
• Typically value (e.g. 0.1 µF – 1 µF).
• Not safety-critical, but still need to withstand surges/spikes.


Safety Classes:
X1
Surge withstand ⇒ 2.5kV to 4kV
Application ⇒ Industrial, Long cables etc.

X2
Surge withstand ⇒ 1.2kV to 2.5kV
Application ⇒ Consumer Electronics

X3
Surge withstand ⇒ <1.2kV
Application ⇒ Benign Environment

Y Capacitors

Y capacitors are typically film-type, but with double insulation and larger creepage distances. They are constructed for reinforced insulation between live and grounded parts. They use ceramic dielectric (Class 1 or 2) with strict control over breakdown and leakage.

They...

• Connected from Line or Neutral to Earth Ground.
• Suppress common-mode noise (same noise on both Line and Neutral).
• Typically much smaller (e.g. 470 pF – 4700 pF).
• Safety-critical: a short or failure here can result in current leakage to chassis or human-accessible parts.

Safety Classes:
Y1
Surge withstand ⇒ 5kV to 8kV
Application ⇒ Industrial, Long cables etc.

Y2
Surge withstand ⇒ 2.5kV to 5kV
Application ⇒ Consumer Electronics

Y3
Surge withstand ⇒ <2.5kV
Application ⇒ Benign Environment

Y-caps must pass rigorous safety standards to ensure fail-safe behavior — if they fail, they must fail open (not short).
A short here can result in current leakage to chassis or human-accessible parts.

Circuit Configuration in Practice

In a typical EMI input filter

• X cap sits across L and N — suppresses differential-mode noise.
• Y caps connect L and N individually to GND — suppress common-mode noise.
• Often combined with common-mode chokes and ferrites for enhanced performance.

Design Considerations

1. Capacitance vs. Leakage Current

• Y capacitors create a small leakage path to ground. Too much capacitance = excessive leakage.
• Most standards limit leakage current to < 0.5–1 mA.

2. Creepage and Clearance

• Since Y capacitors bridge line/neutral to ground, PCB layout must follow isolation rules for safety (e.g., >6.4 mm creepage for reinforced insulation).

3. Filter Design Integration

• Y cap sholud be placed after the common mode choke
• X and Y caps should be used with self-healing film dielectric (typically metallized polypropylene).

4. Regulatory Compliance

Must comply with standards like:

• IEC 60384-14 (for safety-rated capacitors)
• UL/EN 60950 / 62368 (product safety)

Typical Cap Values

X-Cap ⇒ 0.1 µF to 1 µF
Typical voltage rating: 250 to 310VAC

Y-Cap ⇒ 470 pF to 4700 pF
Typical voltage rating: 250 to 500VAC

Selection Guidelines

For X Capacitor:

• Capacitance: Balance EMI suppression vs. inrush energy
• Choose X2 for consumer; X1 for industrial/high-surge lines
• Ensure flame-retardant housing (UL 94 V-0)

For Y Capacitor:

• Choose smallest capacitance that gives adequate common-mode filtering
• Watch leakage current budget
• For medical/portable devices: ≤ 0.1 µF total Y-cap (often < 2x 2200 pF)
• Look for Y1 in harsh environments or reinforced insulation designs

Example: AC Input Filter of a Laptop Adapter

• X Capacitor: 0.1 µF 275V AC (Class X2)
• Y Capacitors: 2 × 2200 pF 250V AC (Class Y2) from L/N to chassis ground
• Total leakage current: ~0.3 mA at 60Hz — safe and compliant

Applications

• SMPS (Switched-Mode Power Supplies)
• AC adapters and chargers
• LED drivers
• Home appliances
• Industrial controllers

Common Mode Chokes for EMI Suppression

Introduction to Common Mode Noise

Common mode noise refers to the interference that appears in phase and with equal amplitude on both lines of a differential signal or a power line with respect to a common reference (typically ground). It’s a major source of EMI because it can easily radiate from cables or PCB traces, especially when long conductors act as antennas.

Common Mode Chokes

A common mode choke (CMC) is a type of passive filter made by winding two or more conductors (typically for a differential signal) on a magnetic core in such a way that:

Differential signals pass unaffected.

Common mode signals (noise present equally on both lines) induce magnetic flux in the same direction, which creates impedance and attenuates the noise.

Structure and Working Principle

A common mode choke is essentially a toroidal or cylindrical magnetic core (often ferrite or powdered iron) with two windings of wire wound around it—usually side by side or bifilar wound.

Key components:

1. Magnetic Core:
   • Typically ferrite material with high permeability.
   • Acts as the medium for magnetic flux.
2. Windings (Coils):
   • Two insulated copper wires are wound around the core.
   • The wires carry current for the differential signal (i.e., one wire for signal, one for return).
3. Pins / Terminals:
   • The choke is mounted on a PCB, with four pins—two for each coil end.

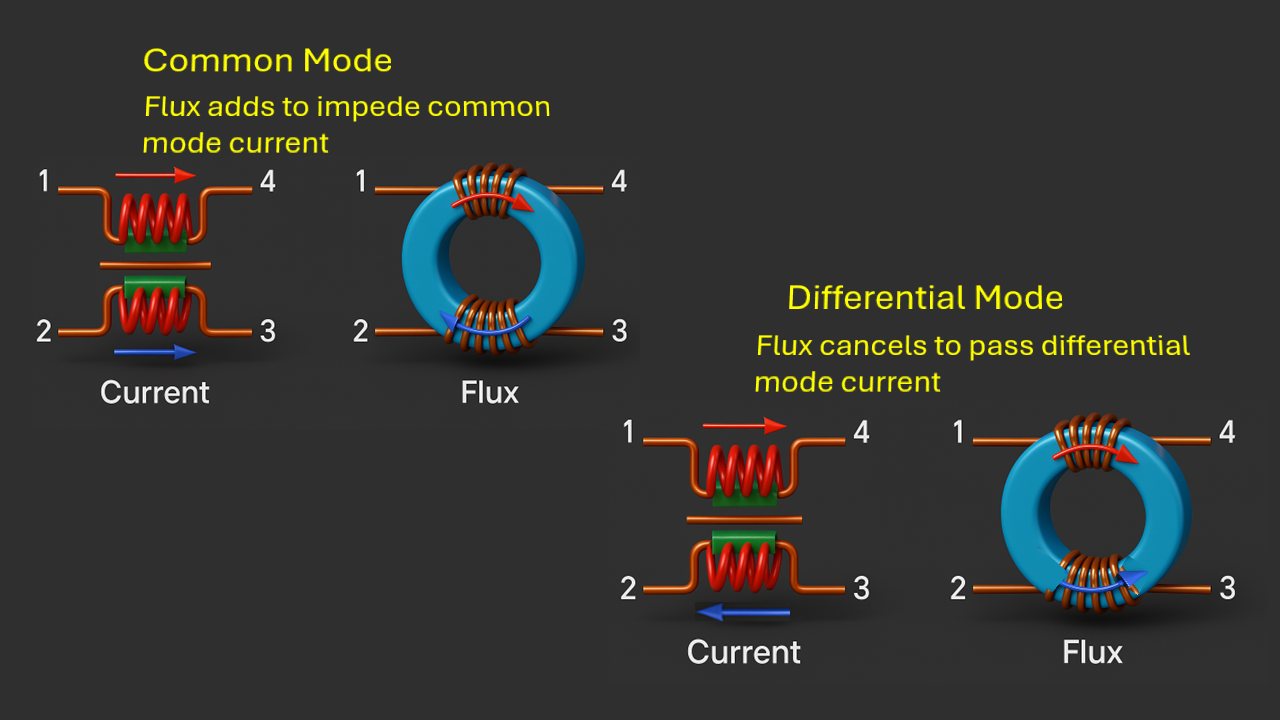

Working Principle of a Common Mode Choke

The common mode choke blocks common mode currents (noise or interference that flows in the same direction on both lines) but allows differential mode currents (normal signal current that flows in opposite directions) to pass freely.

Here’s how it works:

• For differential mode currents:
  • Current flows in opposite directions in the two windings.
  • Their magnetic fields cancel each other out in the core.
  • Result: Minimal inductance → signal passes through with little impedance.
• For common mode currents (e.g., EMI or RF noise):
  • Current flows in the same direction through both windings.
  • Their magnetic fields add up, reinforcing the magnetic flux in the core.
  • Result: High inductance → blocks or attenuates noise effectively.

Think of a CMC as a filter that says:

• "If the currents are opposite (real signal), I’ll let them through with no problem."
• "If the currents are the same (noise), I’ll choke them with high impedance."

Applications in PCB and System Design

Power lines: To suppress switching noise from DC-DC converters.

USB, HDMI, Ethernet: To block radiated and conducted emissions from high-speed I/O.

CAN/LIN buses: To reduce susceptibility and emissions in automotive networks.

Audio circuits: To remove hum and external noise from cables.

Design Considerations for Common Mode Chokes in EMI Suppression

Effective use of common mode chokes (CMCs) requires thoughtful integration into PCB and system-level designs. The following key design considerations ensure optimal EMI mitigation without compromising signal integrity or power delivery.

Common mode chokes (CMCs) are vital components in suppressing electromagnetic interference (EMI), particularly common mode noise that tends to couple onto cables and radiate from electronic systems. To achieve optimal performance, careful attention must be paid to several design factors that influence both EMI suppression and signal integrity.

1 Frequency Characteristics and Impedance Profile

The effectiveness of a CMC is highly dependent on its impedance profile across frequency. An ideal CMC offers high impedance to common mode noise while remaining transparent to differential mode signals. Design selection should be guided by the spectral content of the unwanted emissions. In most digital systems, common mode noise appears predominantly in the 10 MHz to 1 GHz range. Therefore, chokes must be selected based on insertion loss data provided by the manufacturer, ensuring that they provide sufficient attenuation in this band.

Example: In USB 2.0 applications, significant emissions occur between 30 MHz and 300 MHz. A CMC designed to provide high impedance within this band will help in meeting EMI compliance requirements such as CISPR 32 or FCC Part 15.

2 Current and Voltage Handling Capability

Another critical consideration is the current-carrying capability of the CMC. The selected choke must support the continuous operating current of the line without causing magnetic saturation of the core. Saturation significantly reduces the common mode impedance and thereby degrades EMI suppression performance. Additionally, the choke’s voltage rating must exceed the peak differential voltage on the line to prevent insulation failure or dielectric breakdown between windings.

3 Differential Mode Transparency

While the primary purpose of a CMC is to suppress common mode noise, it is equally important to ensure that differential mode signals are not attenuated or distorted. This is particularly relevant for high-speed data lines such as USB 3.0, HDMI, or Ethernet, where signal integrity is paramount. In such applications, low differential impedance and symmetrical winding structures are essential to minimize skew and avoid signal degradation.

4 Optimal Placement Strategy

The physical placement of the CMC on the PCB significantly impacts its effectiveness. It should be placed as close as possible to either the source of EMI (e.g., switching regulators) or the I/O connectors (e.g., USB or RJ45 jacks). This minimizes the path length through which common mode currents can radiate. In systems with well-defined subsystem boundaries, placing the choke at the interface helps isolate noise between domains.

5 PCB Layout Guidelines

Proper PCB layout is essential to maintain the effectiveness of the CMC. The traces connected to the choke must be routed symmetrically to preserve differential balance. Any mismatch can lead to mode conversion, wherein differential signals generate additional common mode noise. The loop area between the signal paths and their return currents should be minimized to reduce parasitic inductance. Moreover, ground stitching vias should be included near the choke to provide a low-impedance return path for high-frequency currents.

6 Core Material and Winding Structure

The core material plays a crucial role in determining the frequency response of the choke. Ferrite materials are widely used due to their high permeability and frequency-selective damping properties. The winding structure, especially bifilar winding, enhances common mode suppression by ensuring tight magnetic coupling while allowing differential signals to pass with minimal interference.

7 Thermal and Mechanical Considerations

As passive components, CMCs also dissipate heat due to core losses and copper resistance. Therefore, they should be selected with a current derating margin to account for ambient temperature, self-heating, and aging effects. The choice between surface-mount and through-hole packages depends on current requirements, thermal dissipation, and mechanical robustness. Surface-mount components are preferred for compact designs and automated assembly processes.

8 Multi-Channel and System-Level Integration

In systems with multiple parallel data lines (e.g., differential pairs in HDMI or Ethernet), multi-channel CMCs can reduce board space and ensure uniform filtering across all lines. However, inter-channel crosstalk and imbalance must be considered during layout and simulation. Additionally, CMCs should be included as part of a comprehensive EMI strategy, integrated with other filtering elements such as ferrite beads and LC filters.

9 EMC Compliance and Validation

Ultimately, the choice and integration of CMCs must be validated through EMI pre-compliance and compliance testing. Techniques such as Line Impedance Stabilization Network (LISN) measurements, spectrum analysis, and near-field probing help assess the effectiveness of common mode suppression. Iterative tuning of choke parameters and placement is often required to meet stringent regulatory limits.

Comparison with Other Filters

Example

Consider a USB 3.0 line:

Without a CMC: Common mode currents induced by fast switching can radiate via the cable, failing EMI tests.
With a CMC: Noise is attenuated before reaching the cable, ensuring compliance with standards like CISPR 32.

Parasitic Capacitance

Parasitic capacitance (also called stray capacitance) is an unintended capacitance that occurs between parts of an electronic component or circuit due to their proximity to each other.
It is not designed as part of the circuit, but it exists due to the physical layout and material properties of the components.


Basic Capacitance Principle:

Capacitor is a device that stores electrical energy by accumulating electric charges on two closely spaced surfaces that are insulated from each other.

C = ε.A/d

• C = Capacitance (F)
• ε = Permittivity of the dielectric
• A = Area of overlapping conductors
• d = Distance between them

Even when we don’t intend to create a capacitor, this physical reality applies. Hence, stray or parasitic capacitance arises in real-world circuits.

Why Does Parasitic Capacitance Exist?

Any two conductive elements separated by an insulator (dielectric) have the ability to store electric charge, forming a capacitor — even if unintentionally. In high-speed or high-frequency circuits, these effects become non-negligible.

Causes of Parasitic Capacitance

1. PCB Traces Close Together
   • Long and parallel traces on a PCB can create capacitive coupling.

2. Adjacent Components
   • Pins on an IC package or connector can have inter-pin capacitance.

3. Component Leads & Sockets
   • Leads and socket connectors can act like capacitive plates.

4. Multilayer PCBs
   • Power and ground planes separated by a dielectric form capacitors.

5. Cables
   • Coaxial or twisted-pair cables can have parasitic capacitance between conductors.


Example 1: Parasitic Capacitance in a PCB Trace

Two traces running side-by-side for 10 cm can exhibit a parasitic capacitance of a few picofarads (pF). At high frequencies, this could lead to signal distortion or crosstalk.

Example 2: MOSFET Gate Capacitance

In a switching circuit, the drain-gate parasitic capacitance in a MOSFET can slow down switching transitions, increasing power loss.

Parasitic Capacitance effect on Circuits

A. In Analog Circuits:

• Low-pass Filtering: Parasitic capacitance with signal resistance forms RC filters → bandwidth loss.
• Miller Effect: In amplifiers, feedback capacitance is amplified, reducing bandwidth.


B. In Digital Circuits:

• Rise/Fall Time Degradation: Extra capacitance loads the driver, causing slow edges.
• Crosstalk: Capacitive coupling allows signal energy to “leak” between traces.
• Timing Skew: Delays in signal transitions due to unequal parasitic loading.


C. In Power Electronics:

• Switching Losses: MOSFET drain-gate capacitance increases transition energy.
• EMI Emission: Fast switching of capacitively coupled nodes causes high-frequency noise.


Disadvantages of Parasitic Capacitance

1. Performance Limitations

• Slower signal transitions.
• Limits max operating frequency in high-speed designs.

2. Signal Integrity Issues

• Causes waveform distortion, rise/fall time degradation
• Overshoot, ringing, and degraded eye diagrams in digital interfaces.

3. Power Loss

• Each switch charge/discharge cycle consumes energy:

E = 1/2CV2

4. Amplifier Instability

• Phase shift due to capacitance can cause oscillations.
  Amplifiers may become unstable due to unintentional feedback paths.

5. Increased EMI

• Capacitively coupled paths can radiate or pick up noise.

Role of Parasitic Capacitance in EMI/EMC

A. EMI (Electromagnetic Interference)

• Stray Capacitance forms coupling paths for high-frequency signals.
• Unshielded traces with parasitic Capacitance can radiate energy like dipole antennas.

B. EMC (Electromagnetic Compatibility)

• Parasitic C makes circuits vulnerable to external RF fields.
• Inter-device capacitance (e.g., between chassis and ground) can allow conducted interference.


Example: Power Converter EMI

In a buck converter, the drain of a MOSFET has high dV/dt. Parasitic capacitance between the drain and heatsink or ground can cause common-mode EMI, leading to EMC test failures.

Mitigation Techniques & Solutions

A. PCB Design Techniques

• Trace Separation: Increase distance between high-speed or sensitive lines.
• Minimize Overlap: Avoid overlapping high-speed traces on adjacent layers.
• Use Ground Planes: Acts as a reference and return path, reduces loop area.
• Short Trace Lengths: Shorter paths reduce distributed parasitic capacitance.

B. Component Placement

• Place analog and digital parts separately.
• Keep high-impedance nodes away from switching signals.

C. Guard Rings & Shielding

• Grounded copper around sensitive analog lines to absorb capacitive noise.
• Use shielded cables or enclosures where needed.

D. Termination Techniques

• Use proper series or parallel termination to match impedance and reduce reflections.
• Helps prevent additional capacitive loading effects.

E. Differential Signaling

• Common in LVDS, USB, Ethernet.
• Rejects common-mode noise from capacitive coupling.

F. Simulation and Modeling

• Use tools like LTspice, Altium, Ansys HFSS to simulate parasitic behavior.
• Extract layout parasitics and optimize during design.

EMI Spectrum Analysis – Frequency Domain Analysis of Emissions


Electromagnetic interference (EMI) can cause significant problems in electronic systems, leading to signal distortion, data corruption, and device malfunction. EMI spectrum analysis in the frequency domain helps engineers understand and mitigate unwanted emissions. This process involves measuring, analyzing, and characterizing EMI signals in terms of their frequency components, rather than in the time domain.

EMI Spectrum Analysis

EMI Spectrum Analysis is the process of examining electromagnetic emissions in the frequency domain to:

• Identify the sources of interference.
• Determine compliance with regulatory limits.
• Optimize circuit design and shielding techniques.

Since EMI signals contain multiple frequency components, frequency domain analysis provides a more precise and detailed view than time-domain analysis.

Importance of Frequency Domain Analysis

Allows engineers to apply targeted filtering and shielding techniques.
Identifies specific frequencies where emissions exceed regulatory limits.
Helps differentiate between radiated and conducted emissions.
Essential for passing regulatory compliance tests (FCC, CISPR, MIL-STD, etc.).

Unlike the time domain, where signals are displayed as voltage vs. time, the frequency domain shows how signal energy is distributed across different frequencies, making it easier to identify noise sources.

EMI Classification Based on Frequency

EMI signals can be categorized based on frequency ranges:

Each of these frequency bands requires specific EMI mitigation techniques, such as filtering, shielding, and PCB layout optimization.

Tools and Techniques for EMI Spectrum Analysis

1. Spectrum Analyzer

A spectrum analyzer is the primary tool for EMI frequency domain analysis. It measures the amplitude of signals over a range of frequencies and provides a visual representation of EMI emissions.

Key parameters measured:

• Frequency (Hz): Identifies the frequency components of EMI.
• Amplitude (dBμV, dBm): Measures the intensity of EMI emissions.
• Bandwidth (Hz): Determines how much of the frequency spectrum is affected.

Example: A spectrum analyzer can display EMI noise at 50 MHz, helping engineers apply filters to suppress that specific frequency.

2. Fast Fourier Transform (FFT) Analysis

FFT is a mathematical technique that converts time-domain signals into the frequency domain.

• Time-domain waveforms are complex and difficult to analyze.
• FFT converts these signals into frequency components, making EMI easier to study.
• Used in oscilloscopes with FFT functionality to perform real-time EMI analysis.

Example: A square wave contains multiple harmonic frequencies, which can be identified using FFT.

3. EMI Receivers

EMI receivers are specialized instruments designed for regulatory EMI testing.

• Comply with standards like CISPR, FCC, MIL-STD.
• Have precise filters and detectors for accurate EMI measurement.

Used in certification testing laboratories.

4. Near-Field Probes

Near-field probes detect localized EMI emissions on a PCB or circuit.

• Used to identify EMI hotspots on a PCB.
• Helps in debugging EMI issues at the component level.
• Works with spectrum analyzers to visualize EMI sources.

Example: A near-field probe can detect EMI leakage from a high-speed data bus on a PCB.

Understanding the Spectrum

1. Narrowband vs. Broadband EMI

Narrowband EMI

          Characteristics: Specific frequency, often periodic
          Examples: Radio signals, intentional transmitters

Broadband EMI

          Characteristics: Wide frequency range, unpredictable
          Examples: Power line noise, switching transients


2. Identifying Harmonics and Spurious Emissions

Harmonics: Multiples of the fundamental frequency, caused by digital switching.

Spurious Emissions: Unwanted signals from oscillators, amplifiers, or PCB traces.

Example: A clock signal at 100 MHz can generate harmonics at 200 MHz, 300 MHz, etc., which need suppression using EMI filters.

Mitigation Strategies Based on Frequency Analysis

1. Filtering Techniques

• Low-pass filters → Remove high-frequency EMI.
• High-pass filters → Block low-frequency conducted noise.
• Band-stop filters (Notch filters) → Suppress specific EMI peaks.


2. Shielding and Grounding

• Faraday cages → Block external EMI from sensitive circuits.
• PCB shielding enclosures → Prevent radiation from high-speed traces.
• Proper grounding → Reduces conducted EMI in circuits.


3. PCB Layout Optimization

• Shorter trace lengths → Reduce EMI emissions.
• Ground planes → Provide low-impedance return paths.
• Differential pairs → Minimize EMI in high-speed circuits.

Conclusion

• Frequency domain EMI analysis helps engineers identify and mitigate electromagnetic emissions.
• Spectrum analyzers, FFT, and EMI receivers are essential tools for analysis.
• By understanding EMI signatures, engineers can apply targeted filtering, shielding, and PCB layout techniques.
• Compliance with regulatory standards ensures product reliability and market approval.

Narrowband and Broadband Emissions

In electromagnetics, when a device or system emits electromagnetic energy, the frequency range over which this energy is spread defines whether it is narrowband or broadband.

Narrowband Emissions

Narrowband emissions are electromagnetic signals that occupy a very small portion of the frequency spectrum. These emissions are typically centered around a specific frequency and have minimal spectral width.

A signal is considered narrowband if its bandwidth (Δf) is much lesser than its center frequency (fc): Δf ≪ fc

For example: A signal at 1 GHz with 1 MHz bandwidth is narrowband.

Narrowband signals are produced by harmonically steady or sinusoidal waveforms, often with little or no time-domain variation.

Common Causes

• Continuous wave (CW) sources
• Sinusoidal oscillators
• Modulated carriers (AM/FM)
• Clock signals in digital circuits
• Tuned RF circuits

These systems are engineered to resonate at a certain frequency (e.g., LC circuits) or transmit data efficiently in a narrow slice of spectrum.

These signals are behaved differently in frequency domain and Time domain

Frequency Domain:

• Appear as a spike or narrow peak in the spectrum.
• Minimal spectral leakage or sidebands (unless modulated).

Time Domain:

• Continuous waveforms (sinusoidal or modulated).
• Long duration signals = narrow frequency spread (Fourier duality).

Challenges with Narrowband Emissions

• Vulnerable to frequency-specific interference.
• Interference with nearby communication systems (co-channel or adjacent channel).
• Does not use spectrum efficiently in high-demand environments.
• Data rate limited by available bandwidth (Shannon-Hartley Theorem).

Solutions for Narrowband Emissions

Channel Interference ⇒ Use spread spectrum (e.g., FHSS, DSSS)
Crosstalk in circuits ⇒ Improve PCB layout and grounding


Broadband Emissions

Broadband emissions are spread across a wide frequency range. Unlike narrowband, there is no specific center frequency or the signal spreads over a large bandwidth.

A signal is broadband if its bandwidth is comparable to or larger than its center frequency: Δf ≥ fc or even no center frequency

Example: A signal from 1–5 GHz.

Broadband emissions result from impulsive, non-sinusoidal, or transient behaviour in time domain.

Common Causes

• Fast switching in digital circuits (e.g., CPUs, FPGAs)
• Switching power supplies
• Motor brushes, arc discharges
• Lightning or spark gaps
• Ultra-wideband (UWB) intentional emitters

Signal Behaviour

Frequency Domain:

• Spectrum appears as a wide spread across frequencies.
• Energy is distributed rather than localized.

Time Domain:

• Short-duration pulses, sharp edges, transient spikes.
• According to Fourier theory, short time = broad spectrum.

Challenges with Broadband Emissions

• Difficult to filter, as energy covers wide frequencies.
• Affects multiple communication bands simultaneously.
• Violates EMI/EMC regulations more easily.
• Measurement and identification require spectrum analyzers with wide capture range.

Solutions for Broadband Emissions

Radiated emissions from circuits ⇒ Use shielded enclosures, ground planes, guard traces
Switching noise in power electronics ⇒ Apply snubbers, EMI filters, soft switching techniques
Harmonics in digital circuits ⇒ Add series termination resistors, slew-rate control


Comparision between Narrowband and Broadband



How 5G Technology is Reshaping EMC Requirements

The deployment of 5G technology has revolutionized telecommunications by enabling faster data speeds, low-latency communications, and the ability to connect millions of devices in real-time. However, this transformation also introduces significant challenges to Electromagnetic Compatibility (EMC) requirements due to the higher frequencies, increased device density, and diverse application scenarios associated with 5G. Let’s explore these changes in detail.

Main Features of 5G That Impact EMC

1. Higher Frequencies:

   • 5G operates at frequencies much higher than previous generations of cellular technology:

     • Sub-6 GHz bands (e.g., 3.5 GHz and 4.9 GHz) for wide-area coverage.

     • Millimeter-wave (mmWave) bands (e.g., 24 GHz to 40 GHz) for ultra-high-speed communications in dense urban environments.

   • Higher frequencies are more susceptible to electromagnetic interference (EMI) and require tighter control over emissions to prevent disruptions to nearby systems.



2. Densification of Infrastructure:

   • 5G networks rely on small cells and a dense array of base stations placed closer together than traditional macro cells.

   • The increased number of transmitters and receivers in close proximity heightens the risk of EMI between systems.



3. Massive Device Connectivity:

   • 5G enables massive Machine-Type Communications (mMTC), connecting billions of IoT devices, industrial sensors, and smart systems.

   • With more devices emitting electromagnetic energy, the electromagnetic environment becomes more crowded and harder to manage.



4. Advanced Technologies:

   • 5G incorporates beamforming, massive MIMO (Multiple Input Multiple Output), and dynamic spectrum sharing, which require advanced signal processing and introduce additional EMC complexities.



Challenges to EMC in 5G Systems

1. Coexistence with Legacy Systems:

   • 5G networks need to coexist with 4G, Wi-Fi, satellite communications, and other systems operating in nearby frequency bands.

   • Managing interference between 5G and legacy systems (e.g., GPS at 1.5 GHz or weather radars near 24 GHz) is critical.



2. Higher Signal Power Levels:

   • To compensate for greater path loss at higher frequencies (especially mmWave), 5G systems often use higher transmit power levels, increasing the risk of EMI with other systems.



3. Increased Emission Sources:

   • Small cells, base stations, IoT devices, and user equipment (e.g., smartphones) contribute to a denser electromagnetic environment, making it harder to control emissions.



4. Stricter Emission Limits:

   • Regulatory agencies such as the FCC and ITU impose stricter limits on 5G emissions to prevent interference with sensitive systems like aviation communication and medical devices.



5. Electromagnetic Immunity for 5G Devices:

   • 5G devices must be designed to handle interference from both 5G networks and other sources in the environment without compromising performance.



6. Cross-Border Frequency Allocation:

   • Different countries allocate different frequency bands for 5G, making international EMC compliance a complex task for global manufacturers.



New EMC Testing and Standards for 5G

1. Expanded Testing Frequencies:

   • EMC testing for 5G must include higher frequency bands, such as the mmWave spectrum, which require specialized equipment and techniques.



2. Dynamic Testing Environments:

   • 5G systems use adaptive technologies like beamforming, which necessitate testing under dynamic scenarios, unlike the static tests used for previous networks.



3. Specific EMC Standards for 5G:

   • Organizations like 3GPP, ETSI, and ITU have developed standards specific to 5G, such as:

     • ETSI EN 301 489-50 for 5G EMC compliance.

     • 3GPP TS 38.113 for 5G radio equipment.



4. OTA (Over-the-Air) Testing:

   • 5G devices often rely on integrated antennas that cannot be tested through direct cable connections. OTA testing ensures compliance with EMC standards in real-world scenarios.



Implications for Manufacturers and Engineers

1. Design Considerations:

   • 5G devices and infrastructure must incorporate advanced shielding, filtering, and grounding techniques to reduce emissions and improve immunity.

   • Miniaturized components in smartphones and IoT devices need to meet stricter EMC requirements without compromising performance.



2. Interdisciplinary Expertise:

   • Engineers must collaborate across RF, antenna, and EMC disciplines to address the unique challenges posed by 5G.



3. Compliance Costs:

   • The need for advanced testing facilities and equipment increases compliance costs for manufacturers.



4. Continuous Updates to Standards:

   • As 5G evolves with new use cases (e.g., autonomous vehicles, telemedicine), EMC standards must be continuously updated to address emerging challenges.



Future Outlook

As 5G technology matures and expands into areas like autonomous vehicles, smart cities, and industrial automation, the challenges of EMC will continue to grow. Innovations in design tools, simulation technologies, and AI-driven EMC optimization are expected to play a significant role in addressing these issues. Furthermore, the advent of 6G in the coming decade will likely push EMC requirements to even greater heights.

EMC Future Trend

The field of Electromagnetic Compatibility (EMC) is continuously evolving, driven by advancements in technology and changes in regulatory environments. Here are some key future trends that are shaping EMC considerations across various industries:

1. Increase in Wireless Communication

As wireless communication technologies proliferate—especially with the rollout of 5G and beyond—there is a growing need to manage the electromagnetic spectrum more effectively. The density of wireless devices and networks increases the potential for interference, making EMC considerations more critical. This trend includes:

• New Frequency Bands: The introduction of higher frequency bands (such as millimeter waves) for 5G will require robust EMC strategies to mitigate interference and ensure reliable communication .

• Dynamic Spectrum Sharing: More dynamic sharing of frequency bands among devices will necessitate enhanced EMC solutions to prevent interference .



2. Miniaturization and Complexity of Devices

The trend toward smaller and more complex electronic devices leads to several challenges for EMC:

• Increased Emissions: As components are packed closer together, the potential for electromagnetic emissions increases. This makes effective shielding and layout techniques essential .

• Design for EMC from the Start: Engineers will need to incorporate EMC considerations earlier in the design process, rather than as an afterthought, to ensure compliance .


3. The Internet of Things (IoT)

The expansion of IoT devices is creating new challenges in managing EMI/EMC:

• Interconnectivity: With numerous devices communicating wirelessly, the risk of interference rises, requiring more sophisticated EMC solutions .

• Scalability: Manufacturers will need scalable EMC testing solutions that can accommodate a wide range of devices, from simple sensors to complex home automation systems .


4. Advancements in Testing Methods

• Automated EMC Testing: The move toward automation in EMC testing will streamline the certification process, making it faster and more efficient. Automated testing systems can provide consistent and repeatable results, reducing the time and cost of compliance .

• Simulations and Modeling: Improved computational tools for simulating electromagnetic environments will help engineers identify potential EMC issues during the design phase, leading to better-prepared products .


5. Regulatory Changes and Global Harmonization

• Stricter Regulations: As technology evolves, regulatory bodies may impose stricter EMC standards to address new challenges posed by emerging technologies. Companies will need to stay abreast of these changes to maintain compliance .

• Global Harmonization of Standards: Efforts are being made to harmonize EMC standards globally, which can simplify compliance for manufacturers operating in multiple markets .


6. Sustainability and Eco-Friendly Practices

As industries shift towards sustainable practices, the need for eco-friendly EMC solutions is emerging:

• Materials and Components: The use of environmentally friendly materials in the production of electronic devices can lead to changes in EMC strategies .

• Energy Efficiency: EMC design will increasingly consider energy efficiency, aligning with broader sustainability goals in manufacturing .


7. AI and Machine Learning in EMC

• Predictive Analysis: Machine learning algorithms can analyze vast amounts of data from past EMC tests to predict potential issues in new designs, enhancing product reliability and performance .

• Adaptive Testing Protocols: AI can help in developing adaptive testing protocols that can modify test conditions in real-time based on the device under test .

Emerging challenges in EMI EMC

Emerging challenges in Electromagnetic Interference (EMI) and Electromagnetic Compatibility (EMC) are becoming increasingly prominent due to advancements in technology and the growing complexity of electronic systems. As the demand for sophisticated electronics rises in various sectors—especially automotive, aerospace, telecommunications, and consumer electronics—managing EMI/EMC has become more critical and complicated. Here are some of the key challenges facing the industry today:

1. Increased Complexity of Electronic Systems

• More Electronic Components: Modern devices often integrate numerous electronic components and systems, increasing the potential for EMI due to the proximity of high-frequency devices and sensitive circuits.

• Complex Wiring and Layouts: As devices become more intricate, the design of PCBs and the arrangement of wiring must be optimized to minimize EMI, which is a significant challenge for engineers.



2. High-Speed Communication Technologies

• 5G and Beyond: The rollout of 5G technology involves higher frequencies (up to 100 GHz) that can lead to more significant issues with EMI. The increased bandwidth also necessitates better shielding and grounding solutions.

• Data Integrity: High-speed data communication, such as in Ethernet and USB technologies, increases the potential for crosstalk and electromagnetic interference, complicating design efforts.



3. Rise of Wireless Technologies

• Wireless Charging and IoT: The proliferation of wireless technologies introduces new EMI sources, particularly in environments dense with devices, such as smart homes or industrial IoT applications.

• Interference Between Devices: As more devices operate wirelessly, the potential for interference between them increases, complicating the design of robust systems that can coexist without degrading performance​.



4. Electric and Hybrid Vehicles

• High-Voltage Systems: Electric vehicles (EVs) and hybrid electric vehicles (HEVs) have high-voltage systems that can generate significant EMI. The presence of inverters, electric motors, and battery management systems adds layers of complexity to EMC.

• Battery Management Systems: These systems must be immune to EMI to ensure safe and reliable operation, presenting a challenge for automotive designers.



5. Advancements in Aerospace

• More Electric Aircraft (MEA): The shift towards more electric systems in aviation, including electric propulsion and high-density power systems, raises new EMC challenges. These systems must effectively manage EMI while ensuring reliability and safety.

• Composite Materials: The increased use of composite materials in aircraft design, which are less conductive than traditional metals, complicates grounding and shielding strategies.



6. Electromagnetic Compatibility with Artificial Intelligence (AI)

• Smart Systems: AI and machine learning algorithms often require complex data processing and communication, which can generate unexpected EMI issues. Ensuring that these systems can operate in electromagnetic environments without interference poses new challenges.​



7. Regulatory Compliance and Testing

• Stricter Regulations: Regulatory bodies are continuously updating EMC standards to address new technologies, leading to challenges in compliance. Staying up-to-date with these changes requires manufacturers to invest in testing and certification processes.

• Testing Limitations: As technology evolves, traditional testing methods may not adequately capture the full spectrum of EMI issues, necessitating the development of new testing protocols and methodologies.



8. Environmental Concerns

Sustainability and EMI: The push for environmentally friendly designs often leads to the use of alternative materials and components, which may not always meet existing EMC standards. Balancing sustainability with performance is a growing concern​.

EMI Issues in PCBs and techniques to solve them

Printed Circuit Boards (PCBs) are the backbone of modern electronics, but they are highly susceptible to Electromagnetic Interference (EMI). Poor PCB design can result in excessive EMI, leading to malfunctions, signal degradation, or non-compliance with Electromagnetic Compatibility (EMC) regulations. Here’s a deep dive into the common EMI issues in PCBs and effective solutions.

Common EMI Issues in PCBs:

1. Poor Grounding and Ground Loops

Issue: Improper grounding can cause ground loops, which act as unintended antennas, picking up and radiating EMI.

Solution: Use a solid ground plane to ensure low impedance paths and minimize ground loops.

2. High-Speed Signal Crosstalk

Issue: Closely routed high-frequency traces can induce noise into adjacent traces, leading to signal integrity issues.

Solution: Maintain adequate spacing between high-speed traces and use shielding techniques like grounded copper pours.

3. Improper Trace Routing

Issue: Long and unshielded traces can act as antennas, increasing radiated EMI.

Solution: Keep traces as short and direct as possible and use differential pair routing for high-speed signals.

4. Power Supply Noise (Switching Noise)

Issue: Switching regulators and power circuits generate high-frequency noise, leading to EMI problems.

Solution: Use decoupling capacitors, ferrite beads, and proper power plane layout to filter noise.

5. Lack of Proper Shielding

Issue: Sensitive analog circuits can pick up EMI from high-speed digital circuits.

Solution: Use metal shielding enclosures and separate analog and digital ground planes.

6. Incorrect Layer Stack-up

Issue: Poor PCB layer arrangement can lead to unintended EMI emissions and signal integrity problems.

Solution: Optimize PCB stack-up by placing power and ground planes adjacent to signal layers for better EMI control.

7. Insufficient Via Placement

Issue: Poor via placement causes return current loops, increasing EMI emissions.

Solution: Use multiple ground vias near high-speed signals to provide low-impedance return paths.

Best Practices to Minimize EMI in PCBs

•  Use a Ground Plane: A continuous ground plane reduces EMI and improves signal integrity.
•  Keep High-Speed Traces Short: Long traces act as antennas, radiating EMI.
•  Implement Proper Shielding: Use metal enclosures or grounded shielding to contain EMI.
•  Use Ferrite Beads and Filters: These components suppress high-frequency noise.
•  Ensure Proper PCB Layering: Follow industry best practices for PCB stack-up to reduce EMI emissions.

By following these EMI mitigation techniques, engineers can design EMC-compliant PCBs that function reliably in high-performance applications.

Power Supply Noise (Switching Noise) and EMI in PCBs

Power supply noise, especially switching noise, is a primary source of Electromagnetic Interference (EMI) in Printed Circuit Boards (PCBs). It originates from high-frequency switching components used in Switch-Mode Power Supplies (SMPS) and various DC-DC converters. These power circuits, while efficient, introduce noise that can radiate or conduct through the board, potentially disrupting sensitive analog and digital circuitry. Managing this noise is crucial for ensuring the Electromagnetic Compatibility (EMC) of a system.

How Power Supply Noise Causes EMI


1. Switching Transients (High dV/dt and dI/dt)

   • SMPS and other switching regulators function by rapidly toggling transistors on and off at frequencies ranging from tens of kHz to several MHz.

   • These abrupt transitions result in sharp voltage (dV/dt) and current (dI/dt) changes, producing transient spikes and switching noise.

   • High dI/dt and dV/dt create intense electromagnetic fields around the switching nodes, which can couple into nearby traces and components, leading to radiated EMI.


2. Harmonic Generation

   • The square or trapezoidal waveforms produced during switching contain high-frequency harmonics (multiples of the fundamental frequency).

   • These harmonics can propagate through the PCB’s power and ground planes, turning the board into an unintentional antenna.

   • Even if the fundamental switching frequency is within acceptable EMI limits, the harmonics may still violate regulatory standards.


3. Ground Bounce and Common-Mode Noise

   • Rapid switching currents can induce voltage fluctuations in the ground return paths (ground bounce).

   • These fluctuations result in common-mode noise, which can couple into signal lines and cause timing errors in high-speed digital circuits.

   • Ground bounce is especially problematic in multi-layer PCBs where shared ground planes are used for both power and logic circuitry.


4. Radiated and Conducted EMI

   • Radiated EMI: Emitted as electromagnetic waves from PCB traces, power components, and cables. It can affect nearby electronic devices or systems.

   • Conducted EMI: Travels through power and ground lines, coupling into other sections of the circuit or escaping via cables, leading to external EMC compliance issues.

Common Sources of Power Supply Noise in PCBs


How to Reduce Power Supply Noise and EMI


1. Decoupling and Bypass Capacitors

   • Use multi-layer ceramic capacitors (MLCCs) close to IC power pins to suppress high-frequency transients.

   • Select capacitors with low ESR and ESL to improve high-frequency filtering.

   • Combine different values (e.g., 100nF, 1uF, 10uF) to cover a broader frequency spectrum.


2. Ferrite Beads and EMI Filters

   • Ferrite beads block high-frequency noise on power lines while allowing DC.

   • Use LC (inductor-capacitor) or Pi (capacitor-inductor-capacitor) filters on power inputs/outputs to attenuate conducted EMI.

   • Proper selection of ferrite impedance versus frequency is critical for effectiveness.


3. PCB Layout Optimization

   • Keep switching loops compact (e.g., VIN, SW, GND loop in buck converters).

   • Use solid, uninterrupted ground planes under noisy circuits.

   • Route high-current paths away from sensitive signal traces.


4. Minimize Loop Areas

   • EMI is proportional to the area of the current loop. Reduce loop size by:

     • Placing components close together.

     • Routing supply and return paths in parallel on adjacent layers.

   • Apply star grounding or split ground planes for separating analog, digital, and power grounds.


5. Control Switching Frequency and Edge Rates

   • Use spread-spectrum modulation in power controllers to spread EMI energy over a range of frequencies instead of a narrow spike.

   • Avoid excessively fast edge rates unless needed. Slower rise/fall times reduce high-frequency emissions.


6. Shielding and Enclosures

   • Use metal enclosures or cans around noisy components to contain radiated EMI.

   • Ensure that shields are properly grounded—floating shields can act as additional antennas.

   • Shielded cables and filter connectors help reduce EMI leaving the PCB via I/O interfaces.

Best Practices


Conclusion

Power supply noise and EMI are critical design challenges in modern electronics. As devices shrink and operate at higher speeds, the susceptibility to interference grows. A well-designed power distribution and grounding strategy, combined with careful component selection and PCB layout, is essential for ensuring compliance with EMC regulations and maintaining overall system reliability.

By applying the outlined techniques and principles, engineers can minimize power supply noise, reduce EMI, and build robust, noise-resistant electronic systems.

Impact of Grounding and Bonding on EMI Reduction

Effective grounding and bonding are foundational to EMI suppression in electronic and electrical systems. Poor implementation can result in unpredictable behavior, system failures, and non-compliance with EMC standards.

What is Grounding and Bonding?

🟢 Grounding

Grounding is the intentional electrical connection between a circuit/system and a reference point such as:

• Earth ground – physical ground used for safety and noise discharge.

• Chassis ground – system frame used as a common reference.

Functions:

• Provides low-impedance path for fault and noise currents.

• Minimizes common-mode noise.

• Protects equipment and personnel from electric shock.

• Controls voltage references across interconnected systems.

🟠 Bonding

Bonding ensures equipotentiality between conductive parts of a system.

• Establishes electrical continuity between metallic components.

• Prevents differential voltage buildup between equipment.

• Ensures enclosures act as effective EMI shields.

• Avoids sparking or arcing due to floating metal parts.

How Grounding and Bonding Reduce EMI

A. 🔌 Reducing Conducted EMI

• Conducted EMI refers to interference traveling along conductors (e.g., power lines).

• Proper grounding:

  • Routes return currents through controlled paths.

  • Eliminates stray inductive coupling and voltage reflection.

• Bonding maintains electrical continuity, ensuring consistent grounding across all parts.

B. 📡 Reducing Radiated EMI

• Radiated EMI arises from unintentional antennas created by floating or poorly bonded conductors.

• Grounding and bonding:

  • Prevent gaps and slots that radiate energy.

  • Ensure metallic enclosures provide shielding via Faraday cage effect.

  • Reduce loop area, minimizing magnetic field emissions.

Types of Grounding for EMI Control

Note: Hybrid strategies are often used in mixed-signal designs.

Common Bonding Techniques to Reduce EMI

🔩 A. Direct Bonding

• Low-resistance connections using bolts, welds, or straps.

• Applied between PCB ground and chassis, shielded connectors, or racks.

🔲 B. Mesh Bonding Network

• Creates a grid of connections among components.

• Maintains equipotential across large systems (data centers, military platforms).

📶 C. RF Bonding

• Designed for high-frequency performance.

• Uses braided straps, spring fingers, or conductive gaskets to ensure continuous shielding.

Best Practices for EMI Control via Grounding and Bonding

🧠 Engineering Tips

• In mixed-signal systems, keep analog and digital grounds separate, joining at a single point near ADC/DAC.

• For RF PCBs, use via stitching around the board perimeter to create effective ground cages.

• Shielded cables and enclosures must be bonded to the same ground potential—floating shields can be worse than no shield.

🧾 Conclusion

Grounding and bonding are not just safety measures—they are essential EMI mitigation strategies. When executed with precision:

• Conducted and radiated EMI are significantly reduced.

• System stability and signal integrity improve.

• Regulatory compliance becomes achievable.

By integrating thoughtful grounding and bonding into your design process, you’re not just fighting EMI—you’re engineering for reliability.
